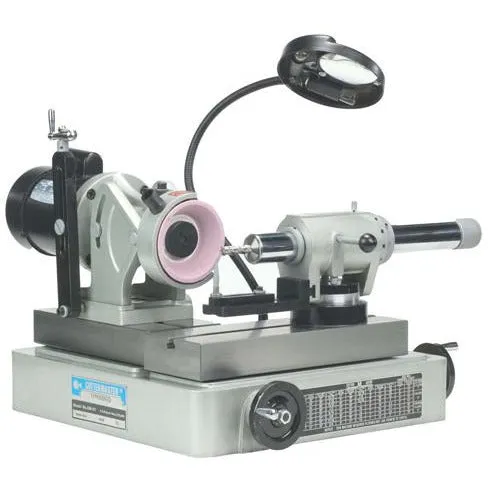

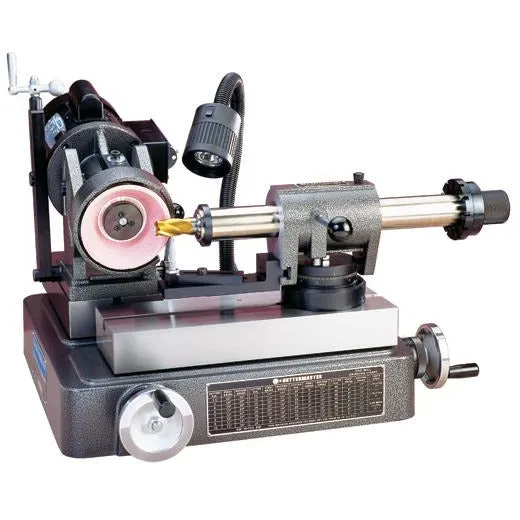

The CM-01 lets you start with the basic machine allowing you to sharpen end mills and cutting tools easily. You then have the option to pick and choose attachments needed to sharpen roughing end mills, sharpen radius end mills and sharpen other various tools in your shop along with performing more processes on each tool. All attachments and accessories interchangeable. Available in inch or metric; 110V or 220Volt / 1-phase.

Made from high-grade American castings; completely machined, ground and assembled in the U.S. The jet-stream air bearing fixture is precision-honed with stainless steel sleeve and triple dipped chrome spindle. Also included is 360 degree swivel base and index collar for end grinding.

Features:
• Balanced grinding spindle
• Machined steel X, Y tables with dovetail ways
• 360 degree swivel for tapered and chamfer grinding
• Takes standard 5C collets with end mill holders going up to 2" (50 mm) in shank diameter.

Included Equipment:
• CM-02 Air Bearing Fixture with Swivel Base & Collar
• Work Area Light and Magnifying Glass.
• CM-20 5" dia. Cup, Alumi-Oxide Wheel , 60 grit

Optional Equipment:
• CM-03C Radius Grinding Attachment
• CM-05P Dual Positioning Pneumatic Finger
• CM-08 Taper Grinding Attachment CM-08
• CM-GDA Gun Drill Sharpening Attachment
• CM-10 Base Cabinet

• CM-11 Work Holding Fixture
• CM-12 Diamond Dresser
• CM-15 Z-axis with wheel guard
• CM-16 Universal Grinding Fixture

• CM-17 Extended Length Draw Bar
• CM-5CHS-6 Six pc. Hardinge 5C Collets Set

The CutterMaster grinder is shipped via freight collect/Best way. Extra charges will apply. Basic shipping fees do not apply.
